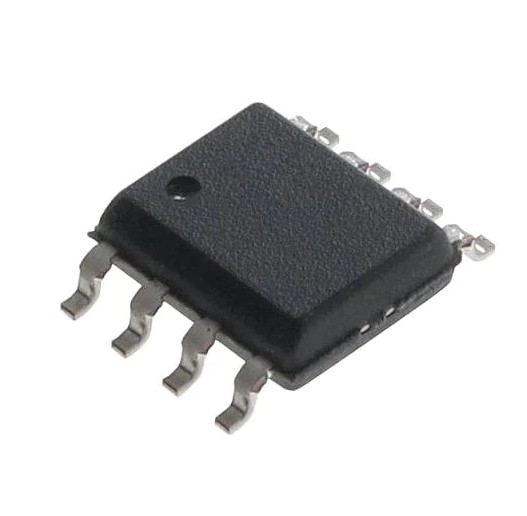

Manufacturer Part Number: IR2181SPBF Manufacturer / Brand: Infineon
Part of Description: SoC FPGA IR2181SPBF Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS

Product parameters

Package / CaseSOIC-8
Mounting StyleSMD/SMT
Maximum Operating Temperature-40 C
Minimum Operating Temperature+150C
Factory Pack Quantity85
Moisture SensitiveYes
Fall Time35 ns
Output Current1.8 A
Height1.5 mm
Length5 mm
Unit Weight0.019048 oz
Width4 mm

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us:

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB


    Please submit your BOM List or Input the part online


    IR2181SPBF Applications:

    Switching Power Supplies:

    The IR2181SPBF can be used in the primary side of isolated and non-isolated switching power supplies to drive the power switches, facilitating efficient energy transfer.

    Motor Drives:

    In motor control applications, the IR2181SPBF can drive the power switches in the inverter stage of a variable frequency drive (VFD) or motor controller.

    Uninterruptible Power Supplies (UPS):

    UPS systems use power electronics for battery charging and inverter stages. The IR2181SPBF can be employed in these applications to drive the power switches.

    Solar Inverters:

    Solar inverters convert DC power from solar panels to AC power. The IR2181SPBF can be utilized to drive the power switches in the inverter stage.

    Induction Heating:

    Induction heating systems require precise control of power switches. The IR2181SPBF can be used to drive the switches in these applications.

    Resonant Converters:

    Resonant converters, such as LLC resonant converters, benefit from high-speed gate drivers like the IR2181SPBF to achieve efficient power conversion.

    Electronic Ballasts:

    Fluorescent and high-intensity discharge (HID) lamps often use electronic ballasts. The IR2181SPBF can be employed in the ballast circuit for efficient lamp control.

    Power Factor Correction (PFC):

    PFC circuits improve the power factor of electronic systems. The IR2181SPBF can drive switches in PFC converters for better power efficiency.

    Electronic Load Switching:

    The IR2181SPBF can be used to control electronic loads, enabling efficient switching and power management.

    High-Frequency Inverters:

    Applications requiring high-frequency switching, such as induction cookers or wireless power transfer systems, can benefit from the high-speed performance of the IR2181SPBF.

    Energy Storage Systems:

    The IR2181SPBF can be used in power converters within energy storage systems, including applications with batteries or supercapacitors.
