IR2110STRPBF

The IR2110STRPBF is a high-voltage, high-speed gate driver IC designed for efficient switching of MOSFETs and IGBTs in various power applications. Here’s a detailed description:

• Type: High-Voltage Gate Driver IC.
• Voltage Rating: Operates with a maximum voltage of 600V, suitable for high-voltage power switching applications.
• Current Drive: Provides peak output currents of 2.5A for sourcing and 2.5A for sinking, ensuring effective gate control of power transistors.
• Propagation Delay: Features a low propagation delay of approximately 300ns, which enables fast and efficient switching.
• Bootstrap Circuitry: Includes integrated bootstrap diodes, simplifying high-side driver circuit design and reducing component count.
• Protection Features: Equipped with under-voltage lockout (UVLO) for both high- and low-side drivers, which helps prevent operation under low supply voltages and ensures reliable performance.

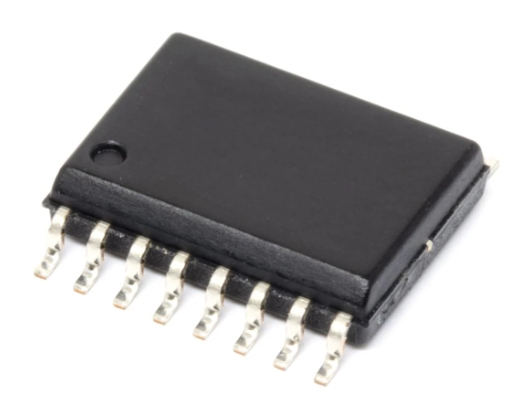

• Package: Available in a 16-pin SOIC package, offering compact size and ease of integration into various electronic designs.
• Applications: Ideal for use in motor drives, high-voltage inverters, DC-DC converters, and other power management systems requiring robust and reliable gate driving capabilities.

The IR2110STRPBF is designed to deliver efficient gate drive with integrated protection and fast switching capabilities, making it suitable for demanding high-voltage power applications.
