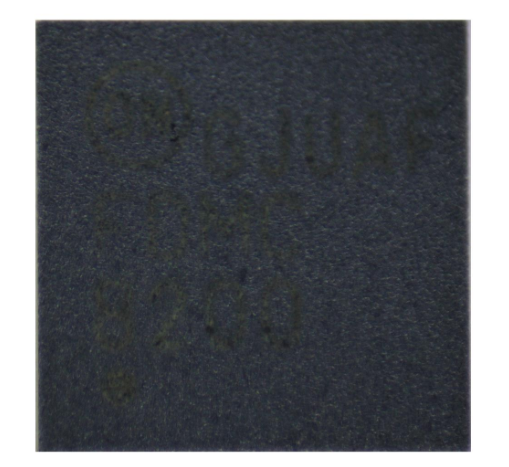

FDMC8200

The FDMC8200 is a dual N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) from ON Semiconductor, designed for power management applications where high efficiency and fast switching are essential. It features low on-resistance and high current handling capabilities, making it suitable for a range of power electronics and digital systems.

Description:

• Type: Dual N-Channel MOSFET
• Manufacturer: ON Semiconductor
• Package: Power33 (Dual MOSFET in a single 3mm x 3mm package)
• Voltage Rating: Drain-Source Voltage (Vds) up to 30V
• Current Rating: Maximum drain current (Id) of up to 5.2A per channel
• On-Resistance: Ultra-low Rds(on) for reduced conduction losses, typically in milliohms range
• Gate Threshold Voltage: Typically between 1.5V to 3V

Key Features:

• Dual MOSFET Configuration: Combines two N-channel MOSFETs in a single package, saving board space and simplifying circuit designs.
• Low On-Resistance: Minimizes power losses during conduction, making it highly efficient in power switching applications.
• High Current Capability: Each MOSFET can handle up to 5.2A, suitable for medium power applications.
• Fast Switching: Designed for rapid switching speeds, improving efficiency in applications like DC-DC converters and motor drivers.
• Compact Package: The Power33 package provides high power density and excellent thermal performance in a compact form factor.

Applications:

• Power Management: Used in power distribution circuits and power supply systems for efficient voltage regulation.
• DC-DC Converters: Ideal for use in high-efficiency DC-DC converters where fast switching and low power loss are critical.
• Load Switching: Suitable for load switching applications in battery-powered and portable devices.
• Motor Drivers: Can be used in motor control circuits that require medium current switching.

Package Dimensions:

• Power33: A compact surface-mount package designed for high thermal efficiency, ensuring effective heat dissipation in space-constrained applications.

Reference Documents:

For detailed technical specifications, electrical characteristics, and design guidelines, refer to the FDMC8200 datasheet provided by ON Semiconductor, available on their official website.
