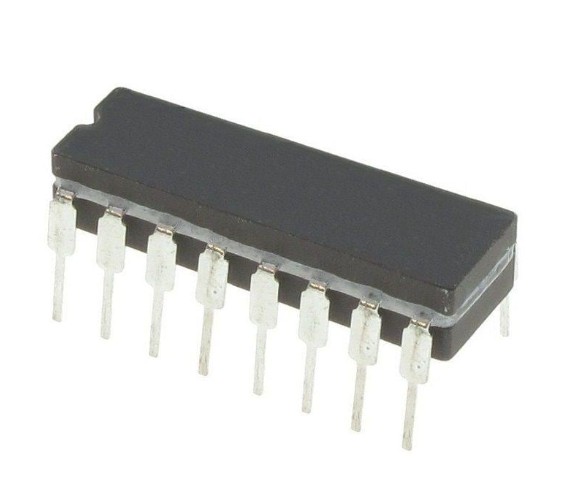

Manufacturer Part Number: DG403AK/883B Manufacturer / Brand: Analog Devices Inc
Part of Description: SoC FPGA DG403AK/883B Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS

Product parameters

ManufacturerAnalog Devices Inc
Package / CaseCDIP-16
Mounting StyleSMD/SMT
BrandAnalog Devices / Maxim Integrated
Maximum Operating Temperature-55 C
Minimum Operating Temperature+125C
Number of Channels2 Channel
Moisture SensitiveYes
Configuration2 x SPDT
On Resistance – Max30 Ohms
Supply Voltage – Min10 V
Supply Voltage – Max30 V
On Time – Max150 ns
Off Time – Max100 ns
Height3.3 mm
Length21.34 mm

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB


    Please submit your BOM List or Input the part online


    DG403AK/883B Applications:

    Analog Signal Multiplexing:

    The DG403AK/883B can be used to switch between multiple analog signal sources, allowing for signal multiplexing in applications such as data acquisition systems.


    Audio Switching:

    In audio applications, the DG403AK/883B can be employed to switch between different audio sources or channels. This is useful in audio mixing consoles, amplifiers, or other audio processing equipment.


    Instrumentation Systems:

    Used in instrumentation systems where precise switching of analog signals is required for measurements and data acquisition.


    Test and Measurement Equipment:

    Integrated into test equipment such as oscilloscopes, signal generators, and multimeters to facilitate the switching of test signals.


    Communication Systems:

    Employed in communication systems for switching between different channels or signal paths, ensuring seamless communication.


    Medical Equipment:

    Applied in medical devices and equipment where analog signal switching is needed for diagnostic or monitoring purposes.


    Automotive Electronics:

    Used in automotive applications for switching analog signals in audio systems, sensor interfaces, or other electronic modules.


    Audio/Video Switching Systems:

    Integrated into systems where switching between various audio or video sources is required, such as in home entertainment systems.


    Data Acquisition Systems:

    Applied in data acquisition systems to switch between different sensors or measurement channels for accurate data collection.


    Signal Routing in RF Applications:

    In RF (Radio Frequency) applications, the DG403AK/883B can be used for switching RF signals in antenna tuning circuits or RF test setups.


    Electronic Switching Networks:

    Integrated into electronic switching networks where the routing of analog signals is necessary, such as in electronic switching matrices.


    Industrial Automation:

    Used in industrial control systems for switching analog signals in control loops or monitoring systems.


    Signal Conditioning:

    Employed for signal conditioning purposes, allowing designers to route signals through different processing paths.


    Battery-Powered Systems:

    Suitable for battery-powered systems where low power consumption and efficient signal routing are essential.


    Aerospace and Defense Applications:

    Deployed in aerospace and defense systems where ruggedness and reliability are crucial, especially in environments with stringent requirements.
