CC0603KRX7R9BB104

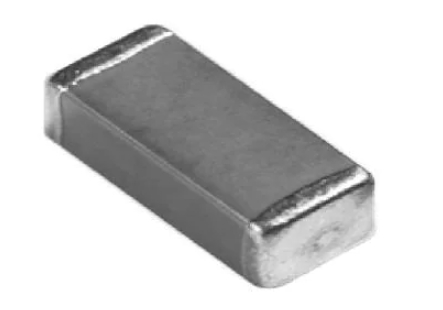

The CC0603KRX7R9BB104 is a surface-mount ceramic capacitor manufactured by Yageo. It is designed for a range of electronic applications where reliable and stable capacitance is essential.

Key Features:

• Capacitance Value: 100,000 pF (picoFarads) or 0.1 µF (microFarads), suitable for various circuit applications requiring moderate capacitance.
• Voltage Rating: Typically rated at 50V, making it appropriate for circuits operating within this voltage range.
• Package Size: 0603 (1.6 mm x 0.8 mm), a compact surface-mount package ideal for high-density PCB designs.
• Type: X7R Ceramic Capacitor, known for its good stability and tolerance within a temperature range of -55°C to +125°C.
• Tolerance: ±10%, ensuring that the capacitance value is within 10% of the specified value.
• Temperature Coefficient: X7R classification, providing stable capacitance with minimal variation over temperature changes.
• High Reliability: Designed to offer long-term stability and reliable performance in electronic circuits.

Typical Applications:

• Power Supply Filtering: Used to filter out noise and stabilize voltage in power supply circuits.
• Signal Coupling and Decoupling: Applied in signal processing circuits to couple and decouple signals, improving overall circuit performance.
• Energy Storage: Utilized in circuits requiring energy storage for timing and power management applications.
• Consumer Electronics: Employed in a variety of consumer electronic devices, including smartphones, tablets, and home appliances.

The CC0603KRX7R9BB104 is valued for its compact size, stable capacitance, and reliable performance, making it an excellent choice for a wide range of surface-mount applications in electronic devices.
