CC0603KRX7R9BB102

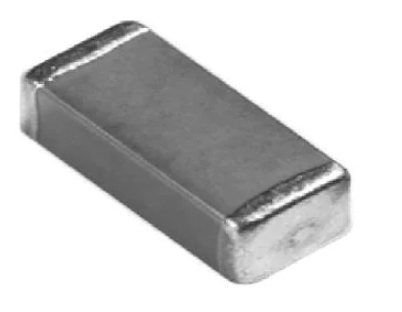

The CC0603KRX7R9BB102 is a surface-mount ceramic capacitor from Yageo, designed for applications requiring stable and reliable capacitance.

Key Features:

• Capacitance Value: 1,000 pF (picoFarads) or 0.001 µF (microFarads), providing a lower capacitance value suitable for high-frequency applications and signal processing.
• Voltage Rating: Typically rated at 50V, making it suitable for circuits operating within this voltage range.
• Package Size: 0603 (1.6 mm x 0.8 mm), a compact surface-mount package ideal for space-constrained designs and high-density PCB layouts.
• Type: X7R Ceramic Capacitor, known for its stability and reliability over a broad temperature range of -55°C to +125°C.
• Tolerance: ±10%, ensuring the capacitance value is within 10% of the specified value.
• Temperature Coefficient: X7R classification provides stable capacitance with minimal variation over temperature changes.
• High Reliability: Designed to offer consistent performance and long-term reliability in electronic circuits.

Typical Applications:

• High-Frequency Circuits: Used in high-frequency and RF circuits where precise capacitance values are crucial.
• Signal Filtering: Applied in circuits to filter and stabilize signals, reducing noise and interference.
• Coupling and Decoupling: Utilized in signal coupling and decoupling applications to improve overall circuit performance.
• Consumer Electronics: Employed in various consumer electronic devices for stable performance in compact designs.

The CC0603KRX7R9BB102 is valued for its compact size, stable capacitance, and reliable performance, making it an excellent choice for high-frequency applications and other electronic circuits requiring precise capacitance.
