CAV24C64WE-GT3

Description:

• Type: I²C EEPROM
• Manufacturer: ON Semiconductor
• Capacity: 64Kb (8K x 8 bits)
• Interface: I²C (Inter-Integrated Circuit)
• Operating Voltage: Typically operates between 1.8V to 5.5V
• Data Retention: Typically up to 100 years

Key Features:

• Non-Volatile Memory: Retains data even when power is removed, making it suitable for storing configuration settings, calibration data, and other important information.
• I²C Interface: Supports I²C communication, allowing easy integration into microcontroller and digital systems with multiple devices on the same bus.
• Fast Write Cycle: Typically offers fast write times, allowing for efficient updates to stored data.
• Low Power Consumption: Designed for low power usage, making it suitable for battery-operated devices and energy-sensitive applications.
• Page Write Capability: Allows writing multiple bytes in a single operation, improving efficiency for larger data transfers.
• Wide Operating Temperature Range: Suitable for a variety of environments, typically ranging from -40°C to +85°C.

Applications:

• Consumer Electronics: Used in devices for storing user settings, calibration data, and preferences.
• Industrial Equipment: Suitable for storing configuration settings and operational parameters in industrial control systems.
• Medical Devices: Used for patient data storage and device configuration in medical equipment.
• Automotive Systems: Can be utilized in automotive applications for data logging and configuration storage.

Package Dimensions:

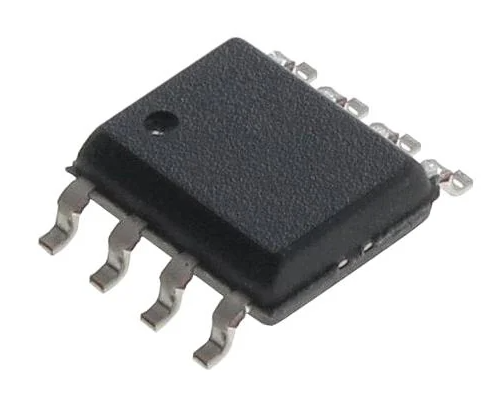

• Package Type: Typically available in a SOIC-8 package for surface mounting, facilitating easy integration into circuit designs.

Reference Documents:

For detailed technical specifications, application circuits, and design guidelines, refer to the CAV24C64WE-GT3 datasheet provided by ON Semiconductor, available on their official website.
