BAV99WT1G

The BAV99WT1G is a dual switching diode designed for low-power applications, providing reliable performance in various electronic circuits.

Key Features:

• Type: Dual diode in a single package, allowing for efficient use of space and simplified circuit design.
• Maximum Reverse Voltage (VR): 40V, suitable for applications that require moderate voltage handling.
• Forward Current (IF): Up to 200 mA, making it ideal for low-power switching tasks.
• Forward Voltage Drop (VF): Typically around 0.9V at 100 mA, ensuring low power loss during operation.
• Fast Switching Speed: Designed for quick response times, making it suitable for high-speed switching applications.

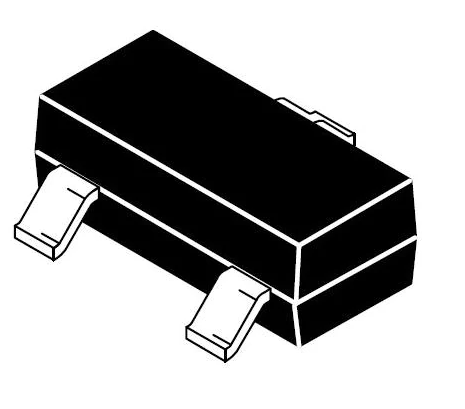

• Package: SOT-23, a compact surface-mount package that fits well in space-constrained designs.
• Low Leakage Current: Minimal reverse leakage current, enhancing efficiency and performance in applications.

Typical Applications:

• Switching Circuits: Commonly used in digital and analog switching applications for signal routing and control.
• Signal Clamping: Employed for clamping signals to protect sensitive components from voltage spikes.
• Rectification: Suitable for low-power rectification tasks in power supply circuits.
• Consumer Electronics: Found in various devices such as smartphones, tablets, and home appliances where compact design is critical.

The BAV99WT1G is valued for its reliability, compact size, and efficient performance, making it an excellent choice for a wide range of low-power electronic applications.
