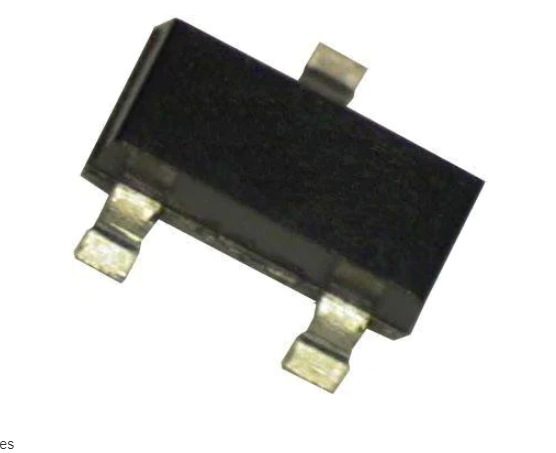

BAV99

Manufacturer Part Number: BAV99 Manufacturer / Brand: Rectron
Part of Description: Small Signal Switching Diodes SOT23,215mA,75V,Dual,Switching Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:
BAV99.PDF

Product parameters

ManufacturerRectron
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseSOT-23-3
Peak Reverse Voltage70 V
Max Surge Current2 A
If – Forward Current215 mA
PackagingReel
Minimum Operating Temperature– 55 C
Maximum Operating Temperature+ 150 C
Factory Pack Quantity3000
SubcategoryDiodes & Rectifiers
Part # AliasesBAV99-T
Unit Weight0.001255 oz
