ADUM1201ARZ

Manufacturer Part Number: ADUM1201ARZ Manufacturer / Brand: ADI
Part of Description: General Purpose Digital Isolator 2500Vrms 2 Channel 1Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width) Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
RoHSDetails
Mounting StyleSMD/SMT

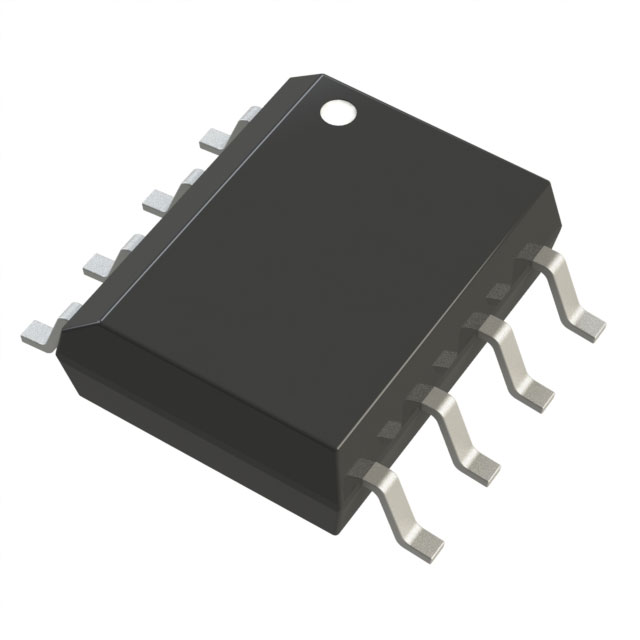

Package / CaseSOIC-8
Number of Channels2 Channel
PolarityUnidirectional
Data Rate25 Mb/s
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
PackagingTube
Factory Pack Quantity98
SubcategoryInterface ICs
TypeGeneral Purpose
Unit Weight0.019048oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The ADUM1201ARZ is a dual-channel digital isolator manufactured by Analog Devices. Here are some key features and characteristics:

    1. Dual-Channel Isolation: Provides two independent isolation channels for digital signals, ensuring signal integrity and protection across different parts of a system.
    2. High Data Rate: Supports data rates up to 25 Mbps, making it suitable for high-speed digital communication.
    3. Wide Supply Voltage Range: Operates over a wide range of supply voltages, typically from 2.7V to 5.5V.
    4. Low Power Consumption: Designed for low power operation, which is beneficial in power-sensitive applications.
    5. Robust Isolation: Offers high common-mode transient immunity and high isolation voltage, typically rated at 2.5 kV (rms).
    6. Compact Package: Comes in a compact SOIC package, making it easy to integrate into various circuit designs.
    7. Applications: Ideal for use in industrial automation, medical equipment, power supplies, and any application requiring isolation between different system components to protect against high voltages and noise.

    The ADUM1201ARZ leverages Analog Devices’ iCoupler technology to provide robust and reliable digital isolation in a compact form factor, ensuring safety and performance in demanding applications.
